PhySys - Therapeutic center

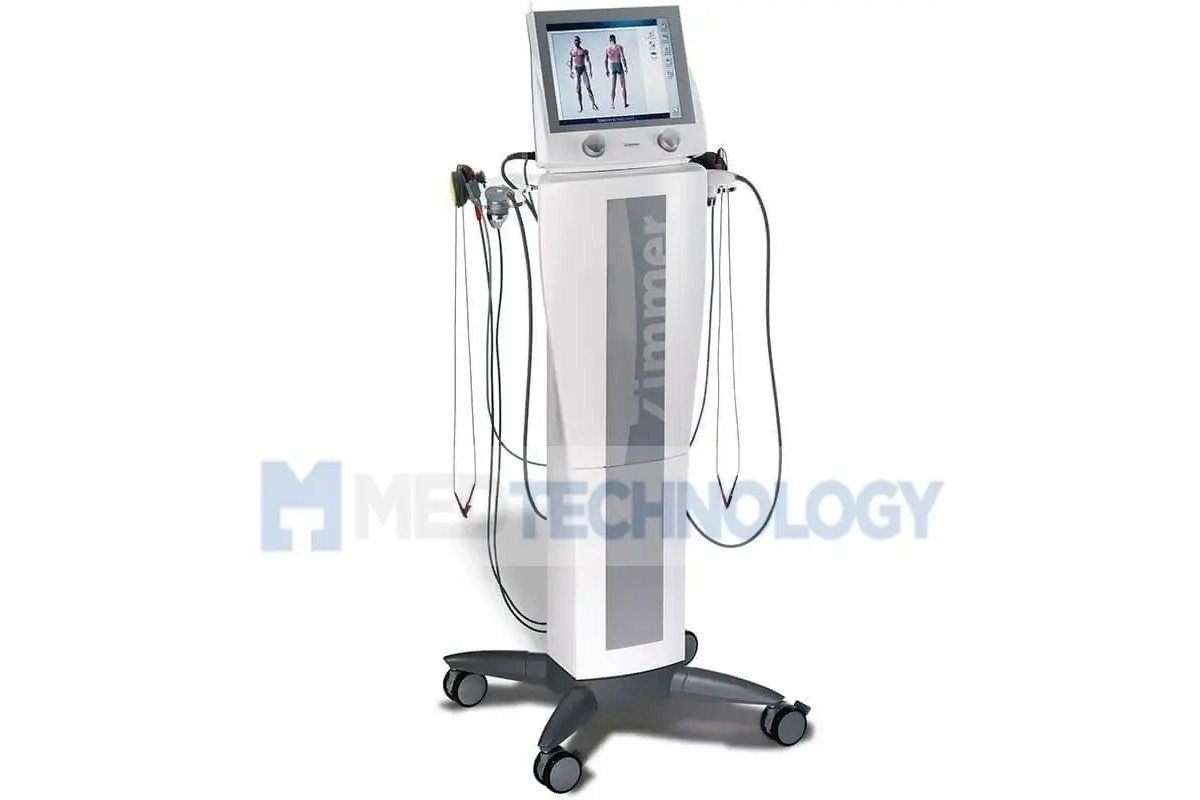

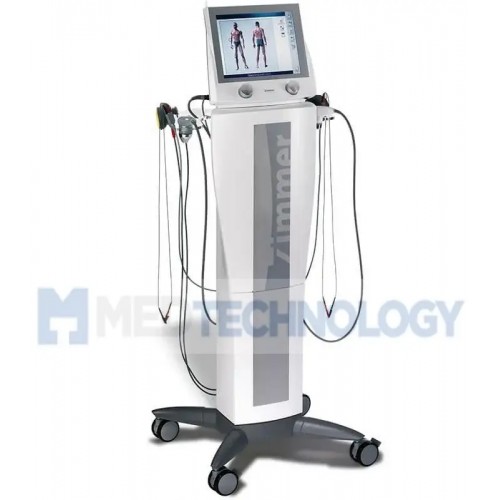

The PhySys therapy center can be placed both on the floor and on the table. This is a multifunctional stand for various physiotherapeutic procedures such as: electrotherapy, ultrasound therapy, vacuum therapy, and combination therapy. The procedures are controlled on a 12-inch color touch screen. The menu is in Russian. It is simple and easy to operate. The device uses all the main types of currents.

The PhySys device is actively used to treat diseases such as Bechterew's disease, osteoarthritis, myalgia, polyneuropathy, ENT pathologies, and cardiovascular diseases. It is used in dermatology, gynecology, and urology.

The following types of procedures can be performed simultaneously in one multifunctional stand:

• electrodiagnostics;
• electrotherapy;
• ultrasound therapy, selection and regulation of the depth of exposure, selection of the thermal effect, micromassage;
• vacuum therapy;
• combined ultrasound + electrotherapy;
• combined electrotherapy + vacuum therapy;
• combined ultrasound + electrotherapy + vacuum therapy;

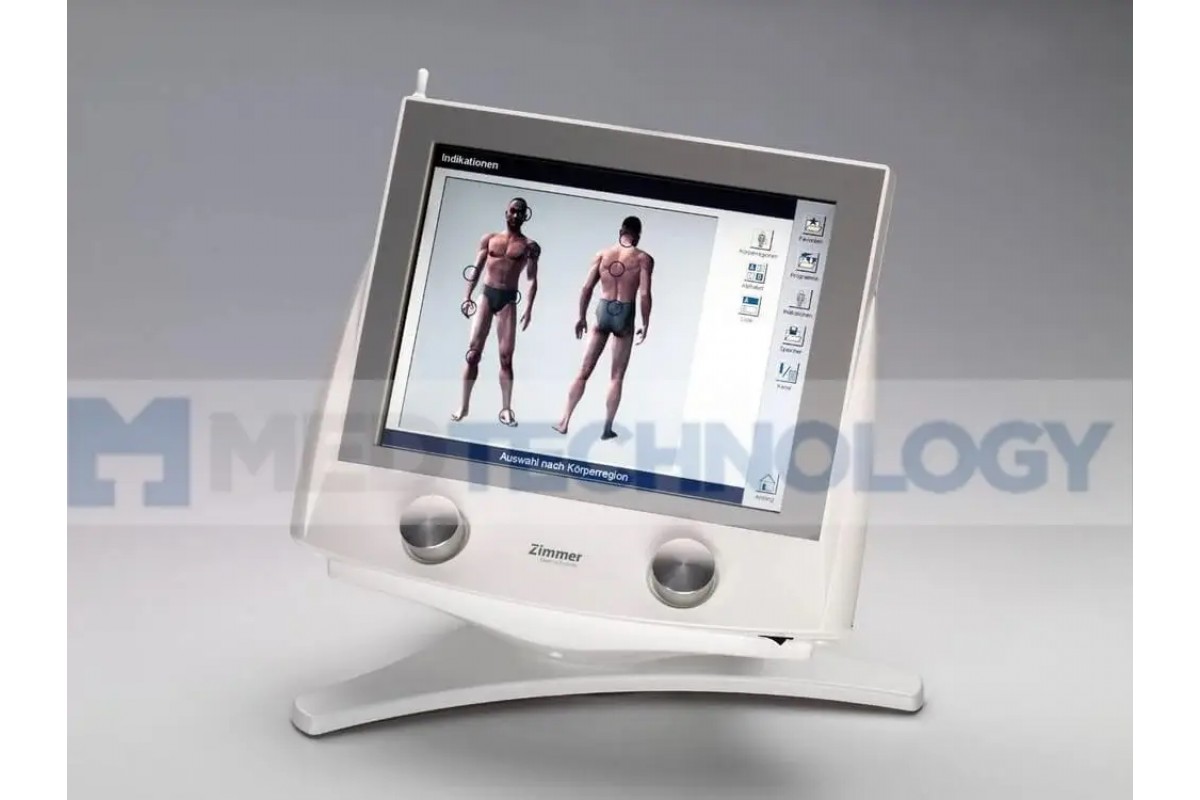

The color 12” touch screen displays all the necessary information, allows you to both select and change the nature of the impact and parameters. The menu is in Russian.

Data acquisition and analysis:

Information can be displayed on the screen in two forms:
an alphabetical list or an anatomical diagram of the human body with a direct indication of the area of impact

Electrotherapy without restrictions

• two independent channels
• two-channel synchronization: parallel, alternative (agonist/antagonist), individual
• channel selection:

MonoStim / 1 program > 1 channel
TwinStim / 1 program > 2 channels
DuoStim / 2 programs > 2 channels

• internal change of order in DuoStim
• possibility of sequential programs

Main types of currents: TENS - asymmetric, symmetric, alternating, SMT (amplipulse therapy), classical four-pole interference, "Russian stimulation", diadynamic current (DF, MF, CP, LP, RC, CPISO), Trabert, Faradic, rectangular and triangular currents, galvanic current (iontophoresis), microcurrents, high-voltage pulses, alternating current with a fundamental frequency of 8000 Hz, combined current of medium/low frequency MF/LF

• selection of current parameters: constant Current (CC) / Constant Voltage (CV)
• Galvanic component (20% or 50%) can be added to the main currents.
• Polarity selection method: Manual/Automatic
• Pulse sequence: adjustable
• Free memory: Therapy (20 inputs) / Diagnostics (20 inputs)
• Memory naming: Automatic and/or keyboard
• Electrodiagnostics: Rheobase, Chronaxie, Electrodiagnostics of nerve and muscle fiber status, Electrotherapy of denervated muscles
• Remote control (optional)

Selection of programs based on indications for use:

Orthopedics: ankylosing spondylitis (Bechterew's disease), osteoarthritis of the hip, osteoarthritis of the knee, osteoarthritis of the shoulder, pain in the lower back, pain in the cervical region, periarthropathy of the shoulder, long head of the biceps syndrome, myofascial pain syndrome, myalgia, myogelosis, muscle hypertonicity, tendodynia, tenomyalgia, insertional tendinopathy, epicondylitis, "tennis" elbow, sprains, bruises, Sudeck's atrophy, spasmodic torticollis, muscular atrophy, etc.

Neurology: headache, neuralgia, neuritis, hyperalgia areas, herpes zoster, polyneuropathy, sleep disorders, etc.

ENT: intra-auricular iontophoresis Bell's palsy, partial laryngeal paresis, tinnitus, ear pain, etc.

CVS diseases: diseases associated with arterial occlusion, peripheral circulatory disorders, electrical stimulation of the calf muscles, angioneuropathy, functional circulatory disorders.

Dermatology: ulcers caused by varicose veins, other chronic skin diseases, bedsores, delayed wound healing, hot bath for hands/feet.

Gynecology, urology: electrotherapy for menstrual pain, pelvic pain, strengthening weak abdominal muscles, urinary incontinence, placental insufficiency.

Ultrasound therapy

Innovation: SonoSwing

• selection and regulation of the depth of action;
• selection of thermal effect
• Micromassage function
• ergonomic attachments with the highest efficiency

Features and specifications:

• frequencies: 0.8 MHz deep effect,
• 2.4 MHz surface effect

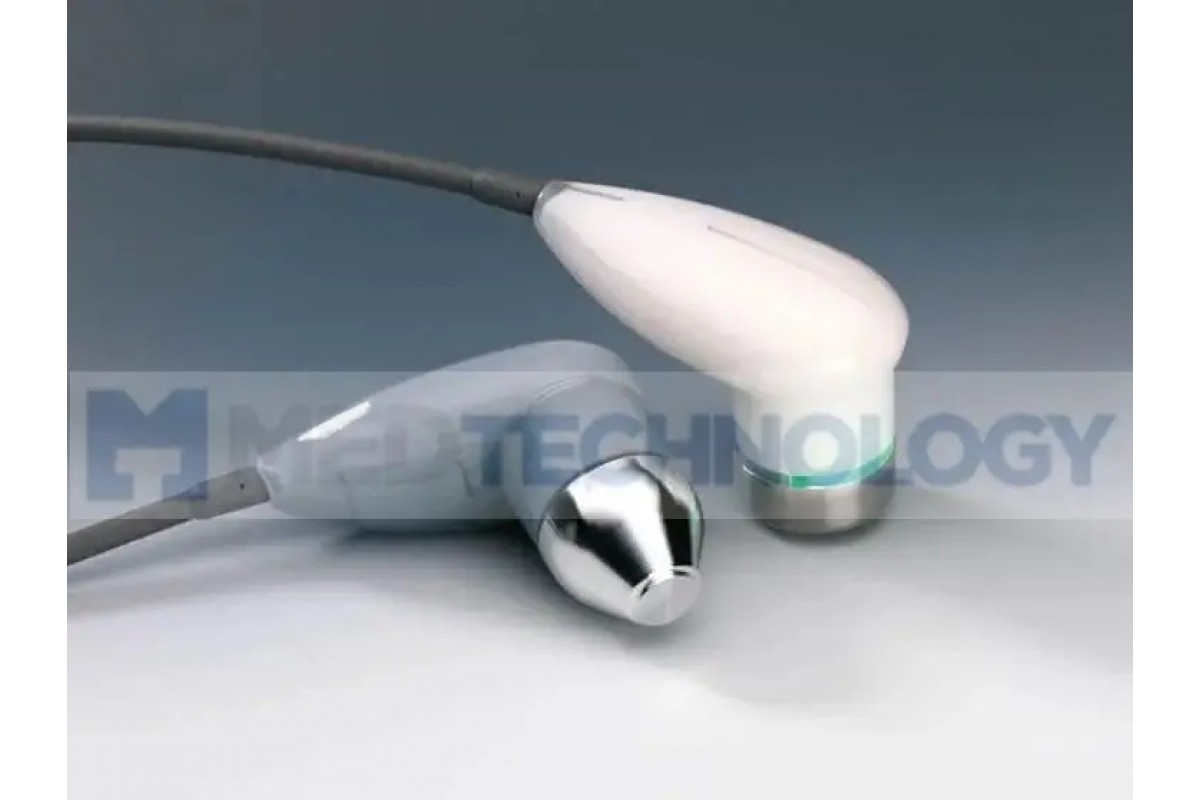

• ultrasound head: multi-frequency, 5 cm² and 1 cm², waterproof
• maximum radiation: 3W/cm²
• choice of desired effect: patented by Zimmer – thermal/mechanical effect or their combination
• contact: sound and visual information

Combination therapy – simple and effective

The therapeutic effect of combined therapy on the body of several physiotherapeutic factors increases the effectiveness of the procedure several times.

• You set the desired effect in advance.
• The device immediately offers a combination of appropriate programs
• The versatility of the device allows you to combine electrotherapy with ultrasound and electrotherapy with vacuum therapy in one device.
