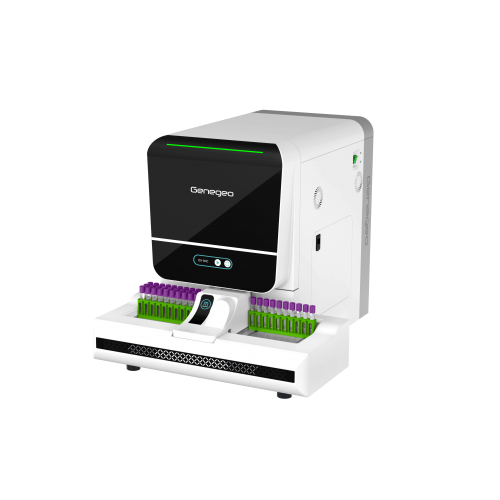

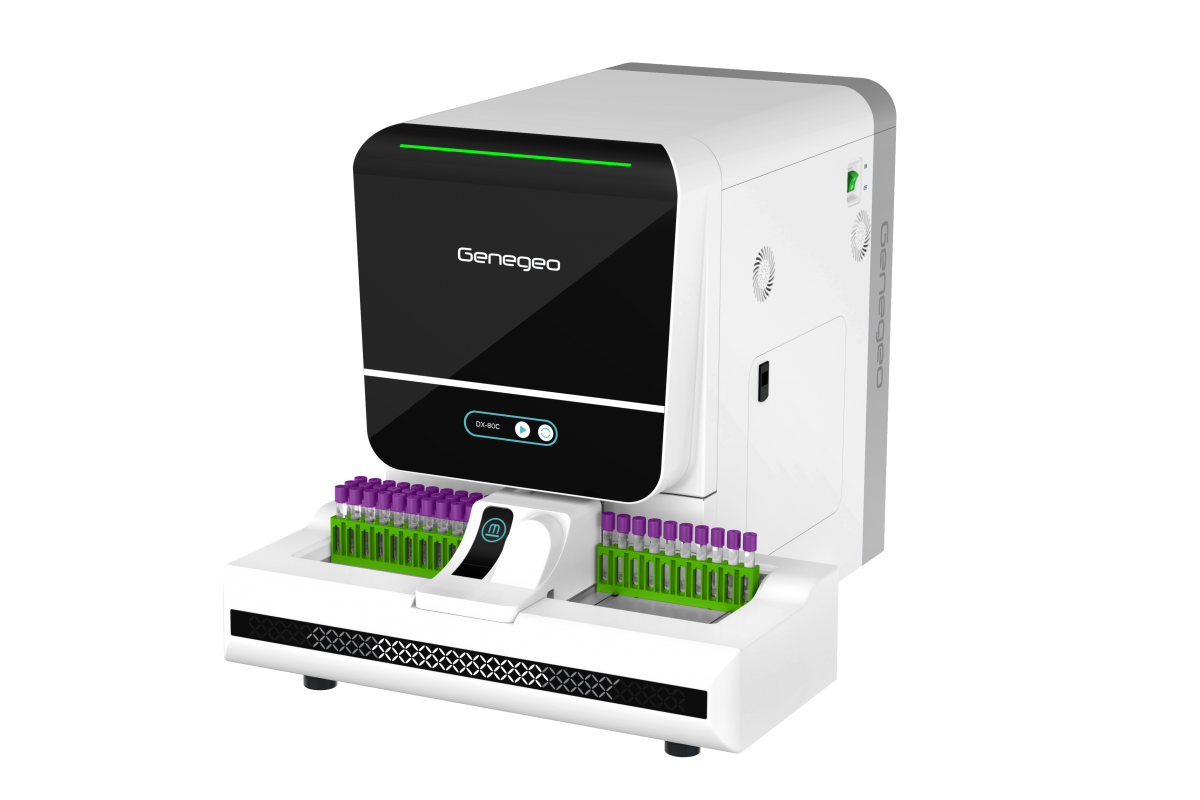

Automatic Hematology Analyzer Medconn DX-80

Medconn DX-80 is an advanced, high-throughput automated expert-level laboratory system designed for comprehensive clinical diagnostics. The series' core strength lies in combining routine hematology testing with simultaneous measurement of key inflammatory markers (CRP and SAA) from a single blood draw, making it an essential tool for evaluating common febrile and infectious conditions.

Key Advantages:

• "Three-in-One" Testing (CBC, CRP, SAA): Simultaneous analysis of complete blood counts and inflammation markers using an ultra-low sample volume (only 20–29 µL of capillary or venous blood).

• Advanced Measurement Technologies: Combines semiconductor laser flow cytometry with fluorescent nucleic acid staining for 5-part WBC differential (DIFF) alongside latex-enhanced immunonephelometry/turbidimetry for acute-phase proteins (CRP/SAA).

• Flexible Model Configurations: Tailored to laboratory needs across configurations including DX-80 (CBC/DIFF), DX-80C (adding CRP), and DX-80S (comprehensive suite including SAA).

• High Efficiency: Delivers a throughput of up to 80 tests per hour (CBC+DIFF) and 60 tests per hour (CBC+DIFF+CRP).

• Full Automation: Features an integrated auto-sampler for standard capped tubes and automated micro-tube mixing capabilities.

Technical Specifications:

• Assay Principles:

  • WBC, RBC, PLT: DC Impedance method

  • HGB: Colorimetric method

  • DIFF: Flow cytometry with fluorescence staining

  • CRP / SAA: Latex-enhanced immunonephelometric/turbidimetric assay

• Testing Throughput:

  • CBC + DIFF: 80 T/H

  • CBC + DIFF + CRP: 60 T/H

• Sample Volume: Microtube sample — 20 µL (capillary blood); full CBC+CRP+SAA test — 29 µL.

• Sample Types: Venous blood, peripheral/capillary blood, pre-diluted blood, serum, plasma.

• Reportable Parameters:

  • Hematology: 26 reportable parameters + 5 research parameters, 3 histograms (WBC/RBC/PLT), 1 scattergram (DIFF).

  • CRP Test: 3 parameters (CRP / FR-CRP / hs-CRP)

  • SAA Test: 1 parameter (Serum Amyloid A)

• CRP Linearity Range: 0.5 – 320 mg/L

• Dimensions (W × D × H): 662 × 870 × 658 mm

• Weight: < 79 kg
