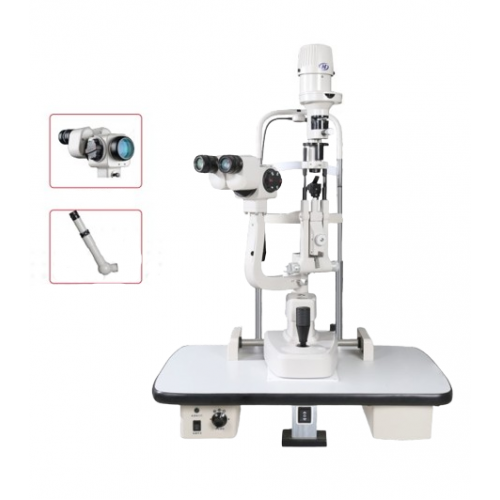

Slit lamp SLM-2ER
- Warranty 12-24 months
- Warranty free service and post-warranty
- Equipment instalation and staff training at the company's expense
- Full customer support (phone consultation even after installation)
- Visiting the exhibition hall
- Leasing sale
- Holding conferences and events
- Quick response to a request
Powerful SLM-2ER professional slit lamp microscope
SLM-2ER professional slit lamp microscope, with a large field of view, good scalability characteristics
-
Large view range, high magnification, good scalability
-
Five-step drum zoom design, easier to use
-
Maximum 14mm spot checks greater extent of disease
-
21.5mm high eye point more comfortable to check
-
All optical lenses are made from import materials, carried out moisture proof, mould proof and coating process, which prove its good optical performance in different weather condition
-
High quality micro-positioning platform, easy to operate
-
Reserved digital upgrade interface, you can upgrade to a digital slit lamp
Optional teaching tube
Technical Specification
Model: SLM-2ER
Microscope Type: Galileo Parallel
Magnification Change Way: Drum Five Magnifications
Eyepiece Magnification: 12.5X
Total Magnifications: 6X, 10X, 16X, 25X, 40X
Diopter Adjustment: -5D ~ +5D
Illumination: Three Steps (Stepless Optional)
Slit Width: (0–14MM Continuous)
Slit Height: (1–14MM Continuous)
Slit Angle: 0°–180° Adjustable
Slit Inclination Angle: 5°, 10°, 15°, 20°
Light Source
Light Spot Diameter: 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm
Filter: Heat Absorption; Grey; Red-free; Cobalt Blue
Fixation: Red LED
Electrical
Illumination Bulb: German OSRAM Halogen Tungsten Lamp
Input Voltage: 110V / 220V (±10%)
Input Power: 60VA
Diffuse Lens: Yes
Preset Lens: Yes
Laser Interface: Optional
Applanation Tonometer Interface: Yes
